Kvar 1000 tan pi2 tan pi1 we know cos pi1 08 and cos pi2092. Calculate resonant frequency in harmonic order of the circuit at every step of the capacitor bank.

Power Factor Explained The Engineering Mindset

How To Find Capacitor Size In Kvar F For Pf Improvement

Calculating The Current Through A Bank Of Capacitors

It is required that the power factor be improved by a four step capacitor bank.

Capacitor bank calculation formula. Calculation of capacitor kvar the calculators on this web page are used to calculate kvar and other capacitor parameters for single phase capacitors commonly used on medium voltage capacitor banks and harmonic filter banks. Capacitor bank of what capacity is required where these capacitor banks are to be located 30 calculation formula to be used. Once the initial cosf is known table 1 allows to calculate in kvar per kw installed the power of the capacitor bank necessary to obtain a defined power factor.

How to calculate kvar for design. When a capacitor bank is initially connected to a voltage source a transient charging current will flow attempting to equalize the system voltage and the capacitor voltage. If the two voltages are equal at the time of switching no inrush current flows.

A measured harmonic content of the above circuit is given in table 1 below. Reactive power of each step of the capacitor bank is 50kvars. The impact of the capacitors on voltage level is directly proportional to its kvar rating and the inductive reactance of the circuit.

Percentage voltage rise kvarxl10kv2. In a three phase system the capacitor bank constituted by three capacitors having the same capacitance can be delta connected or star connected. This is related by the following formula.

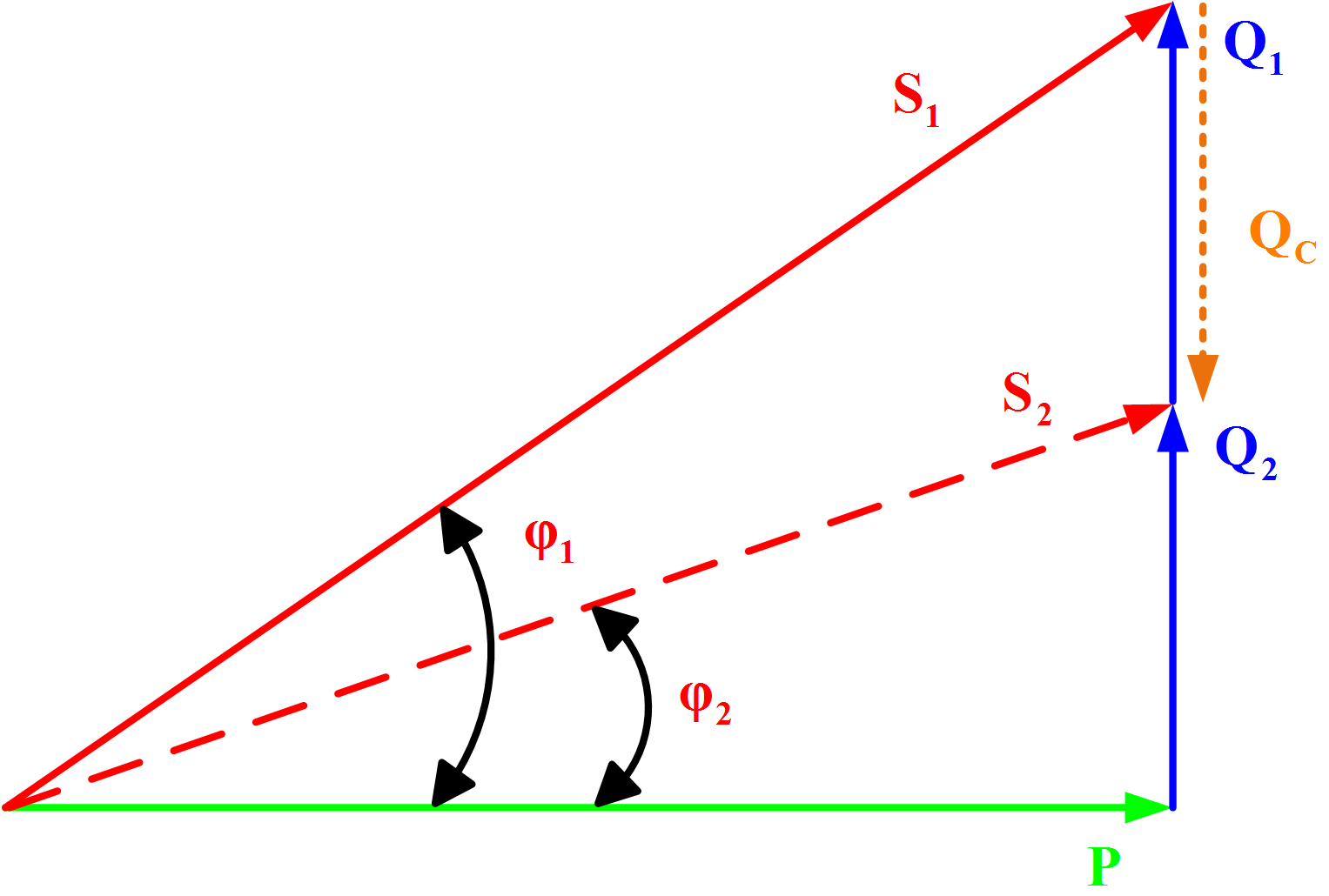

Qc qc kvar p x tan1 tan2 pxk active power x factor k. Kvar power tan pi2 tan pi1 using this formula to design kvar bank or capacitor bank. We have load 1000kw and we maintain power factor 08 and we want to maintain power factor 092 then how much kvar panel we need to reduce kvar.
